Fiber Optic Patch Cords and Components by Role in the Link

Patch cords

Fiber Optic Patch Cords

Simplex and duplex cords in single mode and multimode, with SC, LC, FC, ST, MPO and MTP terminations.

Specify:

Connector, fiber grade, polish, length, jacket and insertion/return loss.

Single mode

Single Mode Patch Cords

OS2 cords for long reach, low loss and high-capacity links with UPC or APC polish.

Specify:

Connector, polish, length, jacket and wavelength range.

Multimode

Multimode Patch Cords

OM3, OM4 and OM5 cords for data centre and in-building links with LC or SC connectors.

Specify:

Fiber grade, connector, polarity, jacket and length.

SC interface

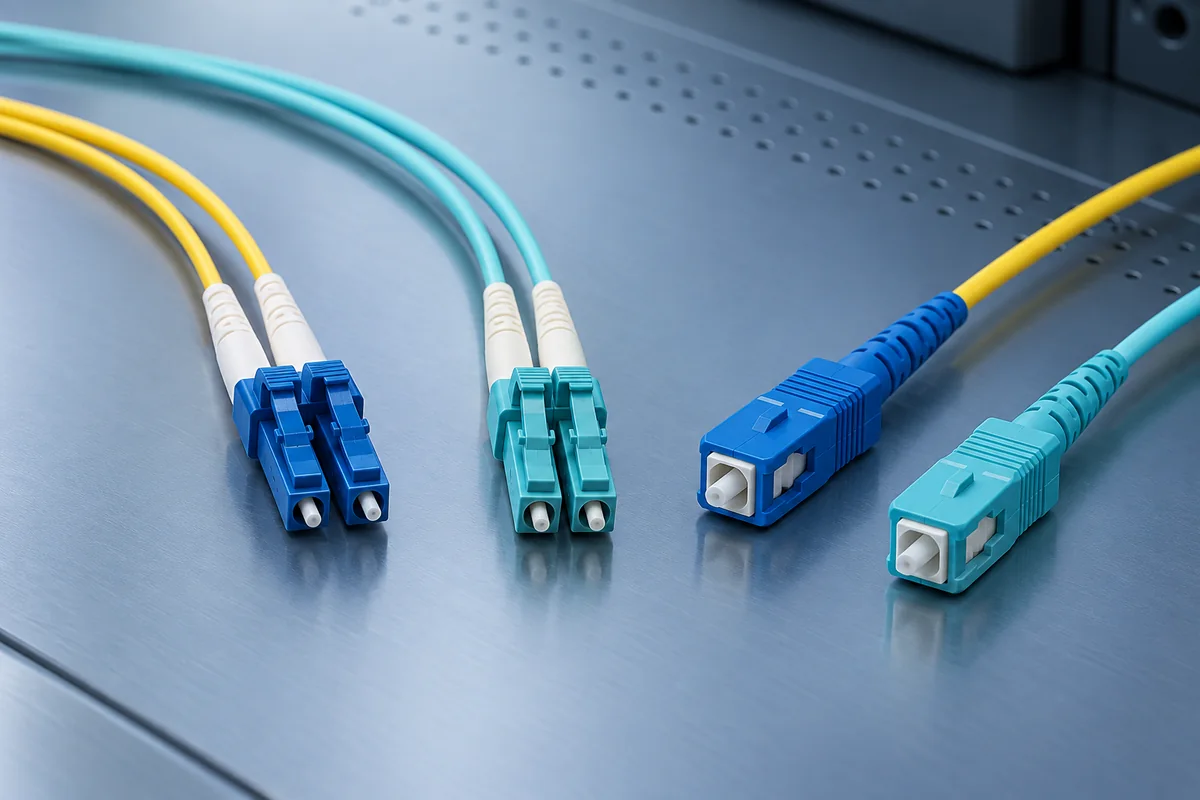

SC Patch Cords

Square push-pull cords for distribution frames, ONU and OLT ports with UPC or APC polish.

Verify:

Connector polish, fiber grade, length and insertion loss.

LC interface

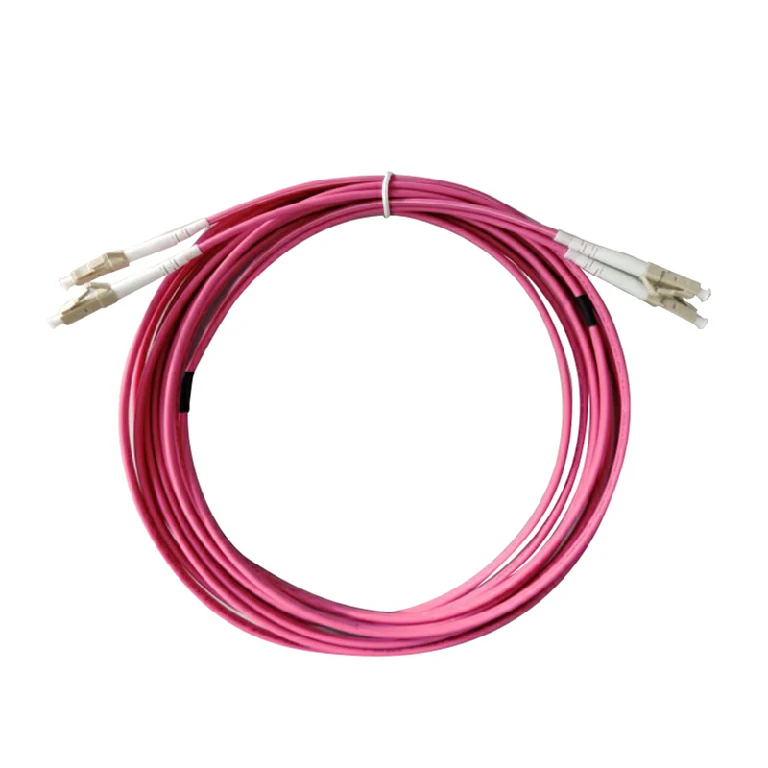

LC Patch Cords

Small-form cords for high-density panels and SFP, SFP+ and QSFP ports.

Verify:

Connector polish, fiber grade, polarity and length.

FC interface

FC Patch Cords

Threaded cords for test equipment, instruments and vibration-prone racks.

Verify:

Connector polish, fiber grade, length and return loss.

ST interface

ST Patch Cords

Bayonet-fit cords for legacy frames and industrial field devices.

Verify:

Connector type, fiber grade, length and loss.

MPO interface

MPO Patch Cords

8, 12 and 24-fiber arrays for parallel optics and backbone patching.

Verify:

Fiber count, polarity, gender, key orientation and loss.

MTP interface

MTP Patch Cords

Refined multi-fiber housing for lower insertion loss and better end-face consistency.

Verify:

Fiber count, polarity, gender, key orientation and loss.

Outdoor

Outdoor Waterproof Patch Cords

Reinforced jackets and sealed connectors for wet, sprayed or exposed links.

Verify:

IP rating, jacket material, connector sealing and tensile limits.

Remote

Remote Pull-Out Patch Cords

Flexible small-diameter cords for RRU, antenna and remote radio runs.

Verify:

Diameter, bend radius, tensile strength, connector type and length.

Passive distribution

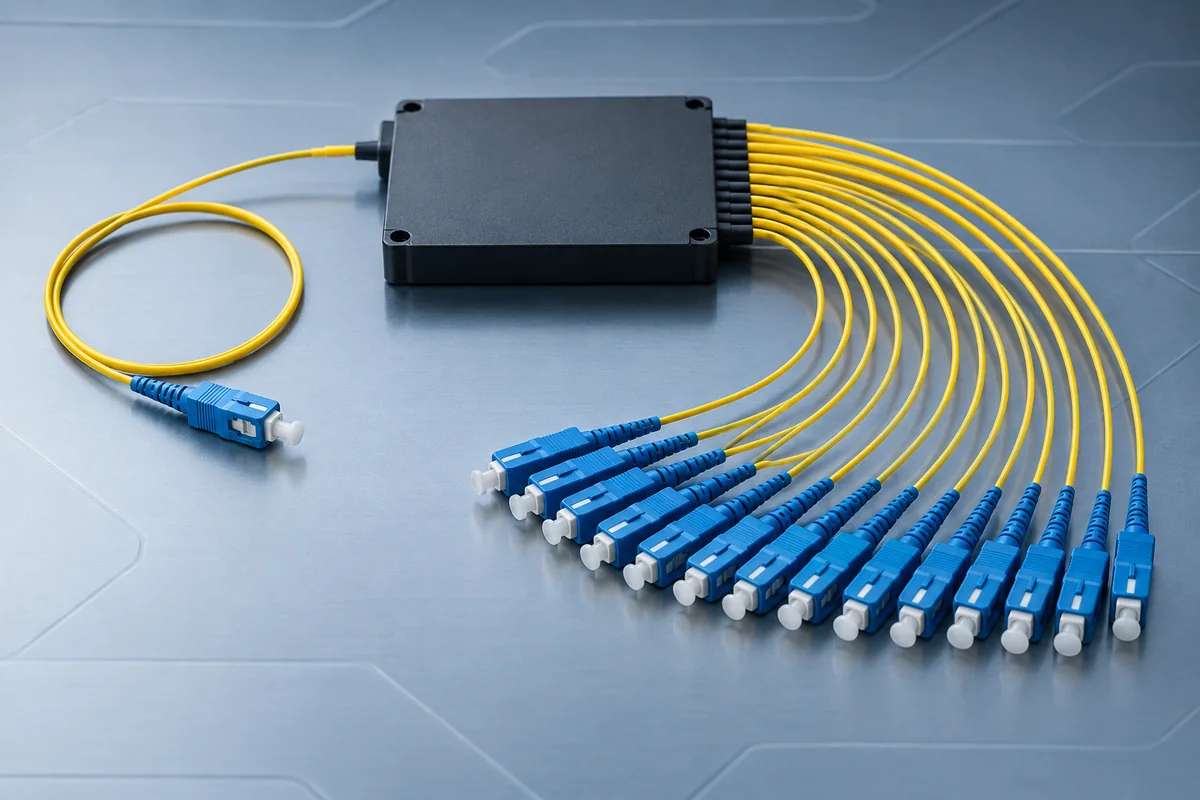

PLC Splitters

Balanced optical distribution for PON and monitoring architectures.

Verify:

Split ratio, insertion loss, uniformity, package and connectorization.

Wavelength transport

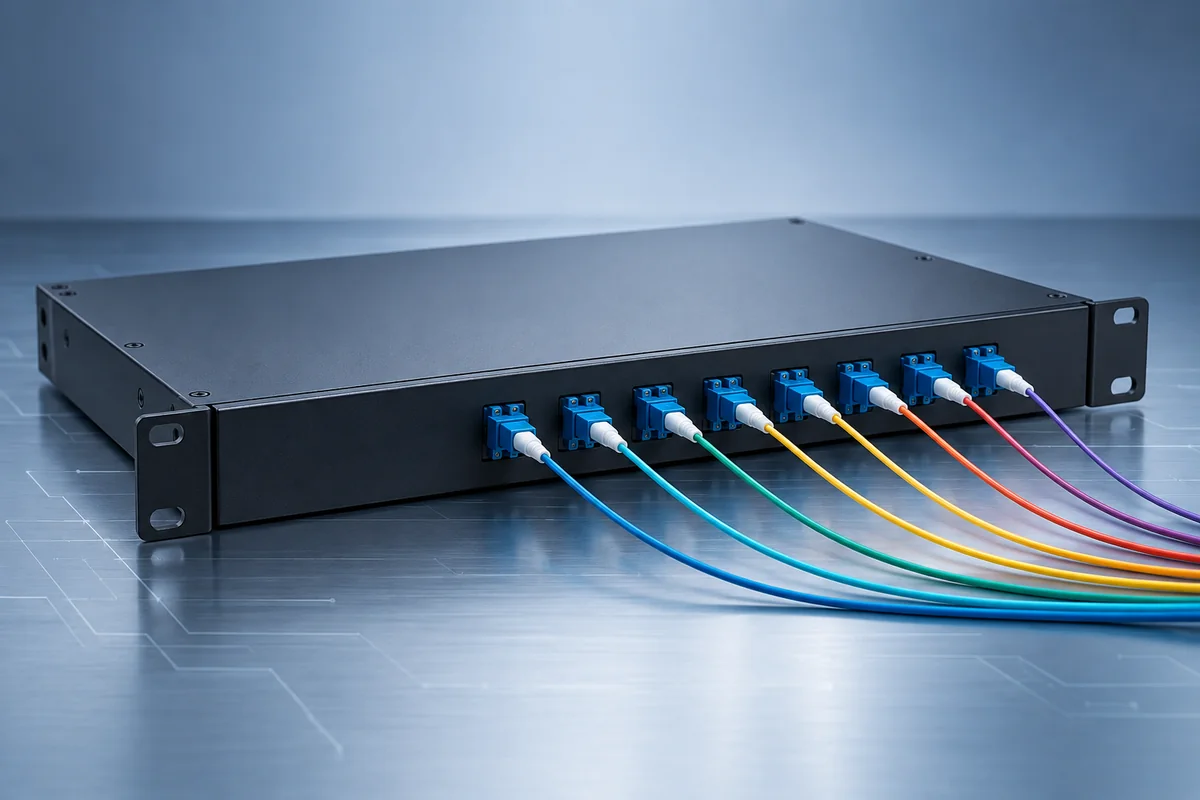

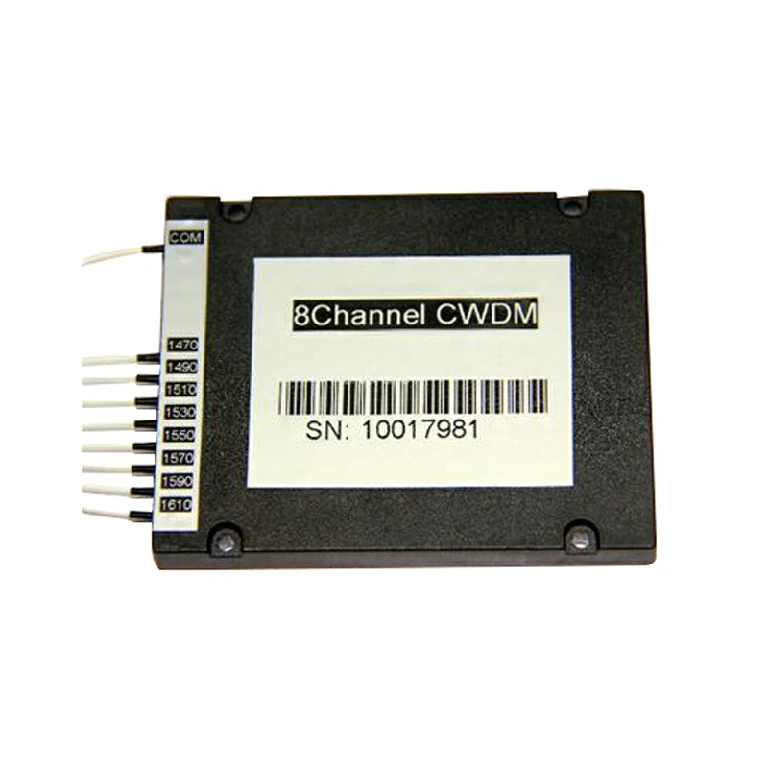

CWDM & DWDM Devices

Multiplexers, demultiplexers and add/drop functions for wavelength reuse.

Verify:

Channel plan, passband, isolation, insertion loss and connector type.

Active optics

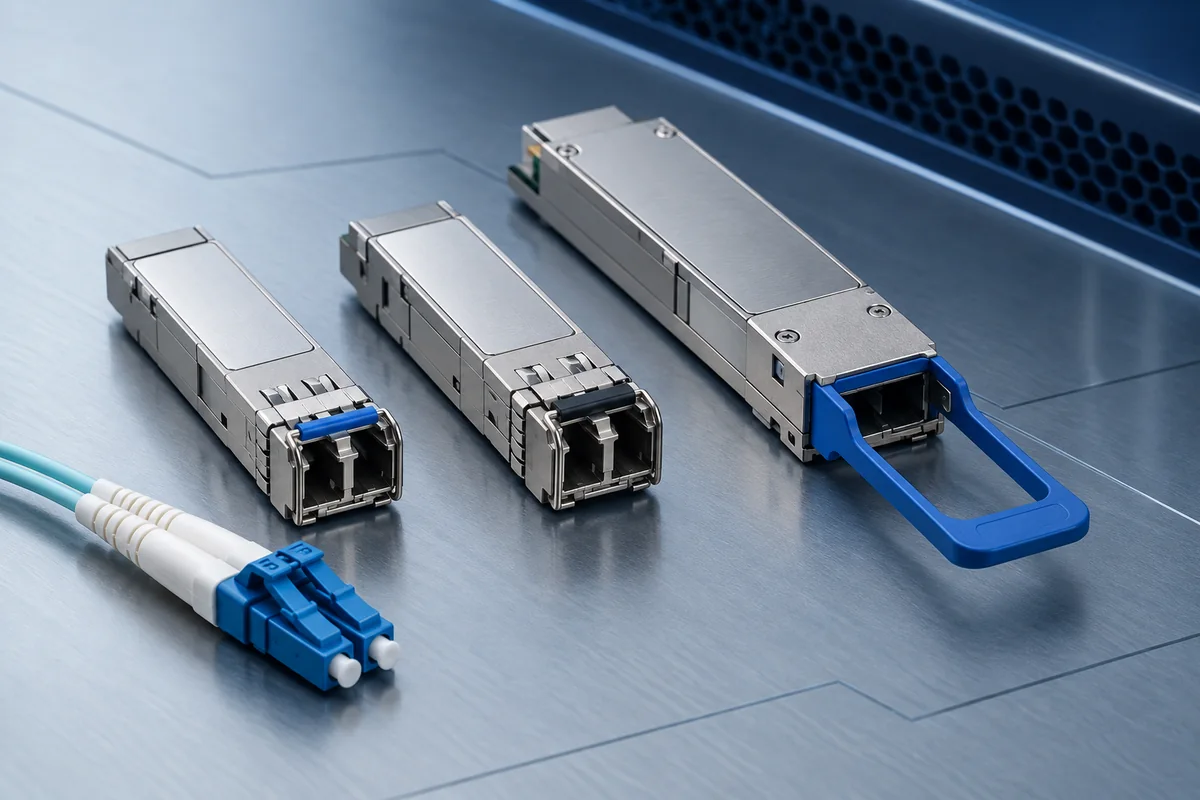

Optical Transceivers

SFP, SFP+, QSFP and related modules for Ethernet and transport links.

Verify:

Form factor, data rate, wavelength, reach, connector and host compatibility.

Verification

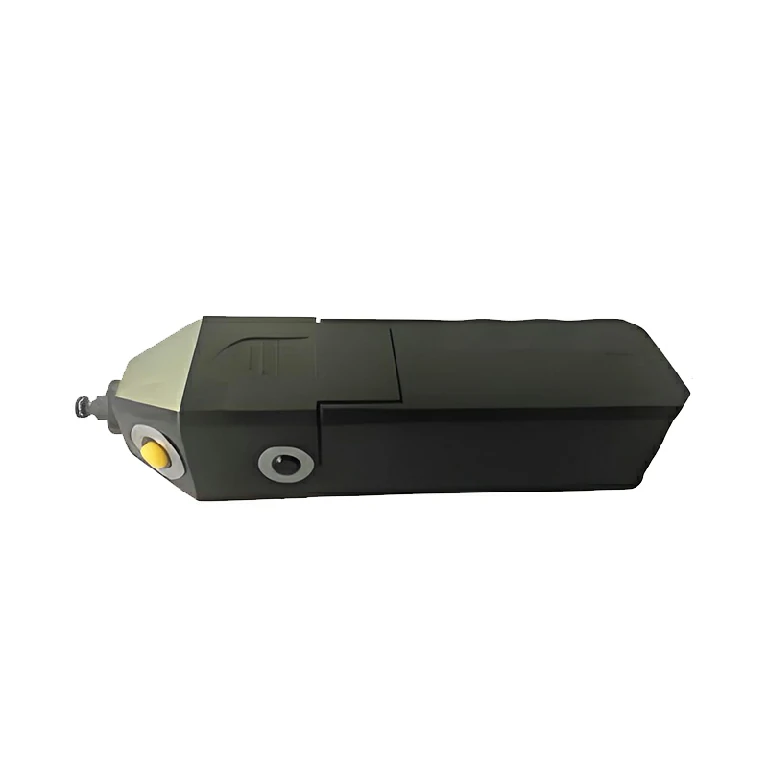

Fiber Test Equipment

OTDR, light source, optical power meter, inspection and cleaning tools for patch cord acceptance.

Verify:

Wavelengths, dynamic range, launch conditions and reporting needs.

Protection & routing

Distribution & Termination

ODF, wall boxes, splice trays, adapters and cable-management hardware.

Verify:

Capacity, cable entry, bend control, connector density and accessibility.

Outdoor protection

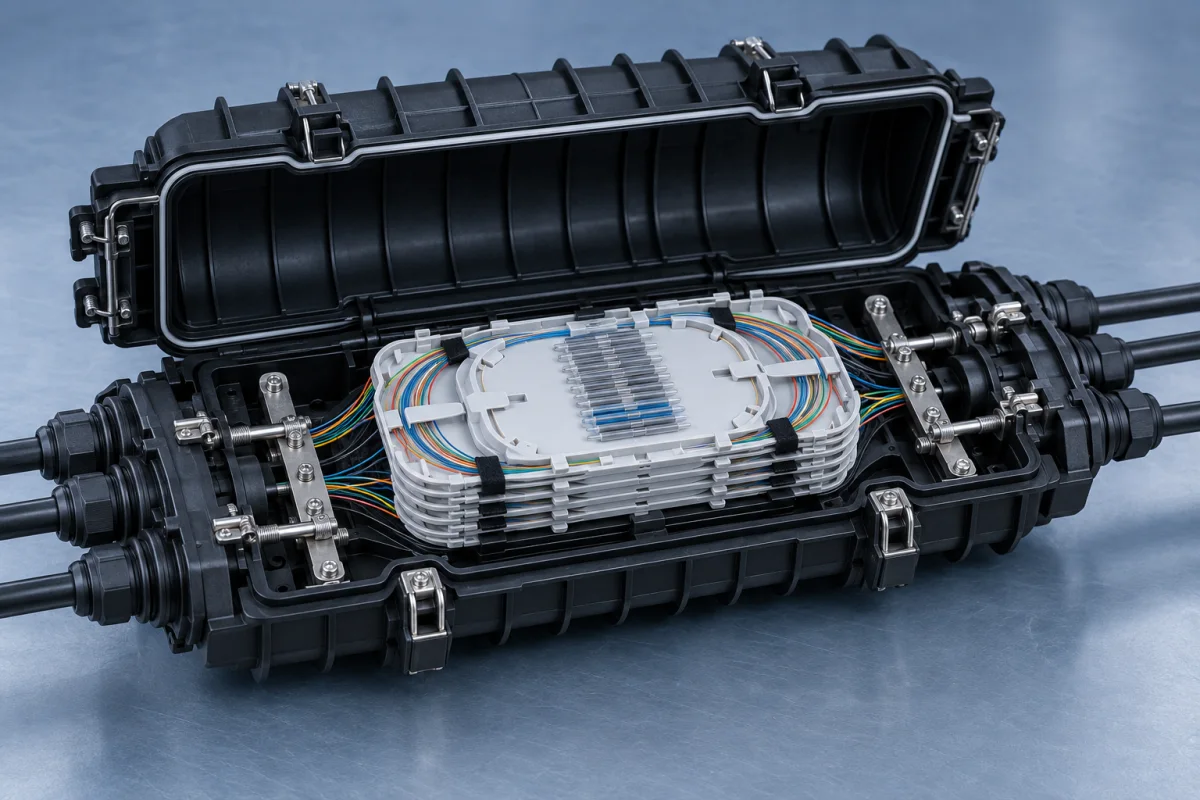

Fiber Splice Closures

Sealed inline and branch enclosures for protecting organized field splices.

Verify:

Tray capacity, cable ports, sealing method, mounting and re-entry.

ODN integration

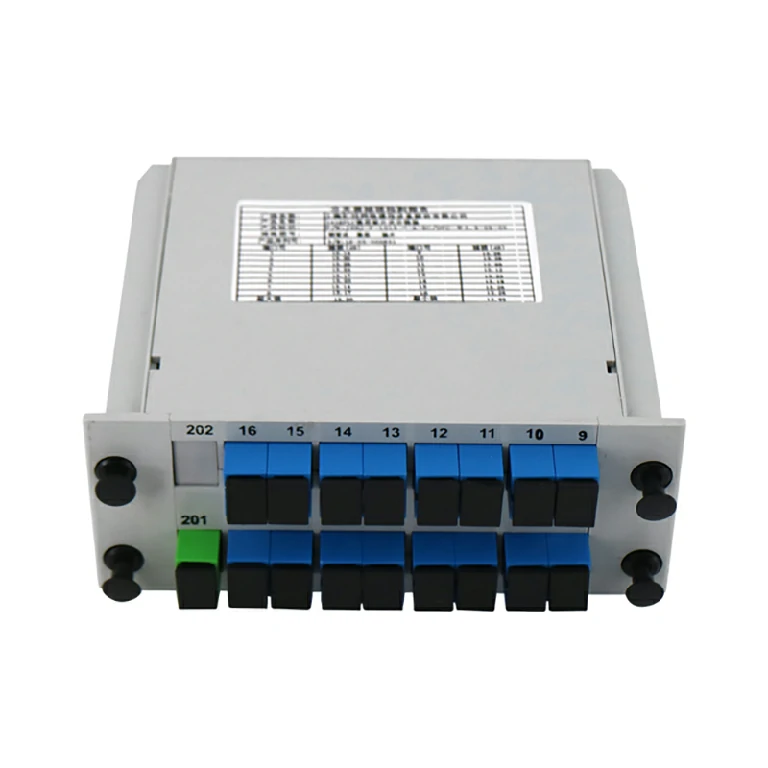

Splitter Cassettes & Inserts

Connectorized modules that organize passive splitting inside distribution hardware.

Verify:

Split ratio, port layout, adapter type and enclosure compatibility.
