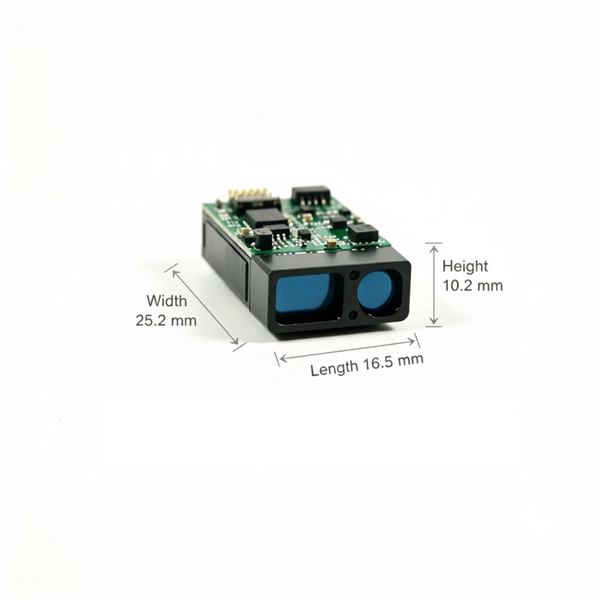

How to modulate the waveform of a laser diode

Fiber optic patch cord knowledge brief Published 30 Jun 2022

Prepared for preliminary research by the JEWELBLU OPTICAL knowledge desk. Confirm connector types, fiber grades, polish, loss budgets and installation requirements against current standards and product documentation.

Laser diodes can be modulated using direct or external methods, with waveform shaping techniques enhancing performance for high-speed and high-precision applications.Direct Modulation

Direct modulation involves varying the driving current of the laser diode to control its output intensity, frequency, or phase. The laser is typically biased above its lasing threshold, and the modulation signal is superimposed on the bias current to produce amplitude modulation (AM), pulse modulation (PM), or frequency modulation (FM) of the emitted light .

  • Advantages: Simplicity, compact setup, and potential for high-frequency operation.
  • Limitations: High-speed modulation can induce relaxation oscillations, mode hopping, and thermal fluctuations, which distort the output waveform and broaden the optical spectrum, increasing bit-error rates in communication systems .
  • Waveform Shaping: Techniques such as time-optimized current pulses can suppress relaxation oscillations and reduce inter-symbol interference, improving performance in digital communication . Direct modulation is commonly used in applications where moderate speeds are sufficient, such as LIDAR, spectroscopy, and low-cost optical communication systems.
External Modulation

External modulation applies the modulation after the laser light is generated, using devices such as:

  • Electro-Optic Modulators (EOM): Use electric fields to change the refractive index of a crystal, modulating intensity or phase.
  • Acousto-Optic Modulators (AOM): Use sound waves to diffract and modulate the laser beam, suitable for high optical power applications.
  • Electro-Absorption Modulators (EAM): Integrated with the laser chip to modulate intensity via electric fields .
  • Advantages: Higher modulation bandwidth, reduced influence of internal laser dynamics, and precise control over pulse shape.
  • Limitations: Increased system complexity, cost, and potential optical losses due to additional components . External modulation is preferred in high-speed optical communication, interferometry, and applications requiring precise pulse shaping.
Analog vs. Digital Modulation
  • Analog Modulation: Continuous variation of the laser output, e.g., sinusoidal intensity changes. Useful for spectroscopy and LIDAR where smooth signal variation is needed .
  • Digital Modulation: Discrete levels of output, typically representing binary data. Requires careful waveform shaping to avoid inter-symbol interference and relaxation oscillations .
Pulse and Resonant Modulation

For pulse laser diodes, short-duration high-current pulses are applied to achieve high optical output without damaging the laser cavity. Current-resonant circuits are often used to generate these pulses efficiently, with careful control of pulse width and duty cycle to prevent overcurrent and thermal damage .

Practical Considerations
  • Choice of modulation method depends on required speed, optical power, and system complexity.
  • Direct modulation is simpler but limited by internal laser dynamics.
  • External modulation offers higher bandwidth and precision but increases cost and setup complexity.
  • Waveform shaping is critical for high-speed digital communication to minimize distortions and maximize data integrity . In summary, laser diode modulation methods are selected based on application requirements, balancing speed, precision, and system complexity, with waveform shaping techniques enhancing performance for high-speed and high-fidelity optical systems.
